INFRASTRUCTURES

Infrastructures are a fundamental part when there is any kind of resource in the deployment area. Be completely independent when we speak of supply of electricity, air conditioning, transport and water is essential for the subsistence of the camp or hospital.

DRINKING WATER TRAILER CAPMA2000L

This equipment consist of a water tank of 2000 liters (others capacities under request) integrated into a trailer structure, which allows to solve the needs of supply logistics as well as drinking water conservation, both in the best conditions and just with an easy handling, load and unload.

The trailer is a lightweight unit made of stainless steel so it can be towed by any kind of truck or lightweight vehicle. The system is fully equipped with a lockable waterproof tool box, with tire changing tools and lifting jack.

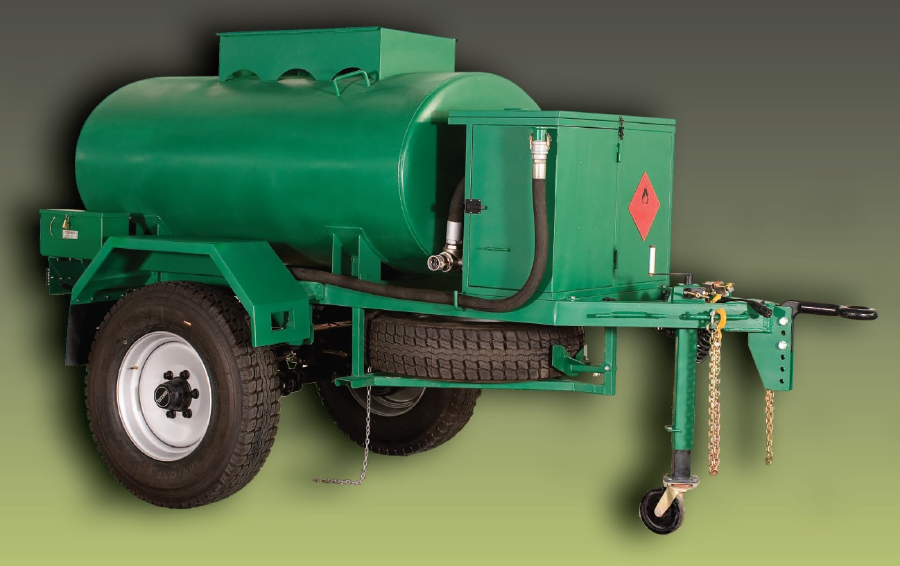

DIESEL TRAILER CIDMA2000L

This equipment consist of a 2000 liters diesel fuel tank (Other capacities under request) integrated into a trailer structure, which allows to solve the needs of supply logistics as well as fuel diesel conservation, both in the best conditions and just with an easy handling, load and unload.

The trailer is a lightweight unit made of stainless steel so it can be towed by any kind of truck or lightweight vehicle.

POWER GENERATOR TRAILER

There are solutions adapted to the defence and civil sectors within the broad range of MANDRADE products. We manufacture products in compliance with rigorous standards and according to the customer’s specifications. We handle each project commissioned with complete confidentiality, providing all of the technical information correctly encoded and referenced, thus guaranteeing its optimal execution.Big power range of Generators (Trailered or into containers)



WATER TREATMENT PLANT TRAILER

Drinking water plants on trailer are easy to use, have basic maintenance and its operation is very simple. Our water treatment plants have self-cleaning system, extending the life of all components. All components are manufactured with high quality materials and especially designed for wet environments. The unit is ready to be used and easy to transport due thanks to its trailer. Using ultra-filtration technology, we obtain high quality filtered water according to WHO standards. It is supplied with generator to be totally autonomous (OPTIONAL), interior lighting and flexible tank for accumulation of water. Optionally, it is supplied with a tap system for bottle and carafe filling and have the possibility to install reverse osmosis system (OPTIONAL)

AIR CONDITIONING INSTALLATIONS

The 5, 7, 11 or 18KW  air conditioner is a portable unit developed primarily to provide air conditioning in temporary or transportable buildings or tents.The equipment is a small, light-weight aluminium unit built into a rigid steel frame. The unit is designed for outside installation with ducted supply and return air. For field hospitals, where the need for filtration is higher than that of normal accommodation, a dual filtration system for the internal air path is available like an option. It can provide cooling at ambient temperatures up to +60oC. and heating from -32ºC.



LOADING TRAILER

Towing two-axis load capacity of 1800 Kg each. Frame formed by a structure with stainless steel profiles which are porches. You reinforce integrated in the frame and its accessories on the platform. It has fixed sides of 600 mm high and flip-up rear hatch. All metal parts processed are antics with primer. Painted olive green silk RAL 6031 or to be choosen by the client.

ARMORED CARGO TRAILER

Tailgate for the cargo body will be dropdown. The latch catches are able to remain closed and secure during the transport of the cargo, even subjected to various forces due to the roughness of the terrain.Fenders are made of steel with 2mm thickness. Lunette is manufactured by Tecimer with capacity of 6000kg with loop dimensions, 41mm Loop inner diameter and 76mm loop cross-section diameter. Lunette is compatible with the swivel pintle. Pintle height range that trailer is designed to accommodate from 780mm to 1200mm. Retractable wheeled landing leg is provided with loading rate 1000kg. Range of elevation from ground to bottom of lunette is 780mm to 1200mm. Two drawbar safety chains are provided with load rating of 6000kg

FOR ANY QUESTION, COMERCIAL INFORMATION OR REQUEST FOR A QUOTATION PLEASE DO NOT HESITATE TO CONTACT US.
